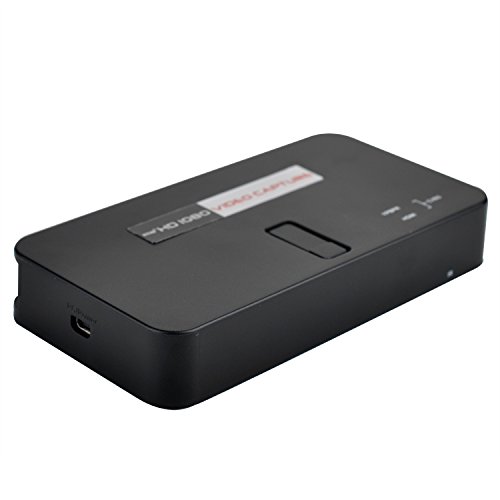

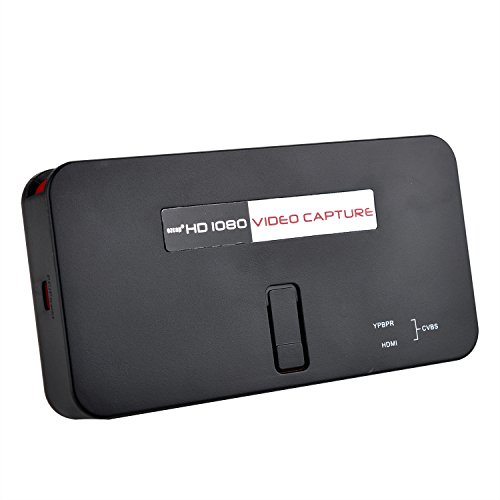

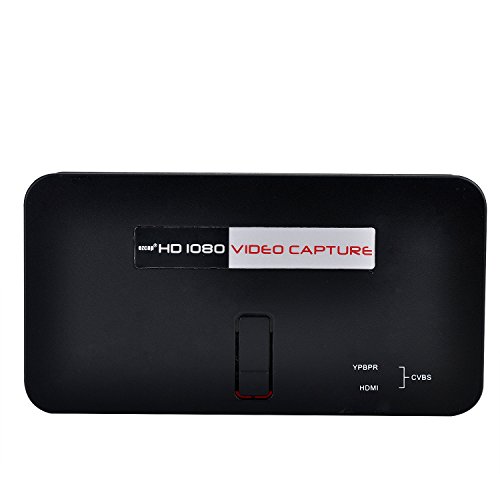

ezcap284 HD Video Capture, can capture up to 1080P video from HDMI,Ypbpr (component) or composite port, such as blue ray, set-top-box, computer, game box, VHS, etc. With remote control, can set input signal manually, recording quality, or capture a still image by SNAPSHOT button.
Connections:

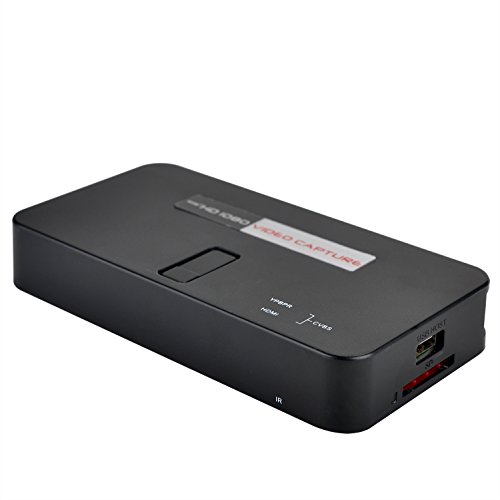

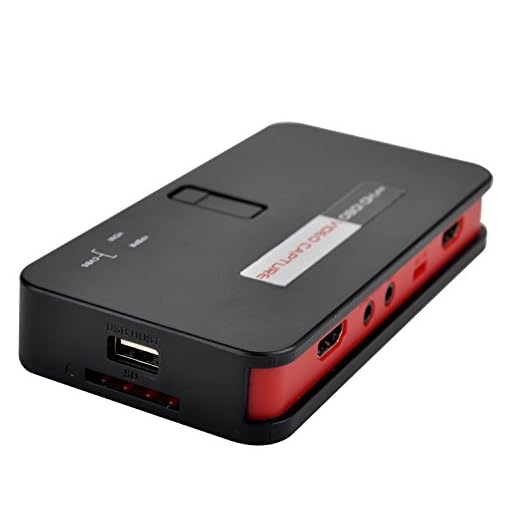

Interface: USB 2.0 Host, SD Card

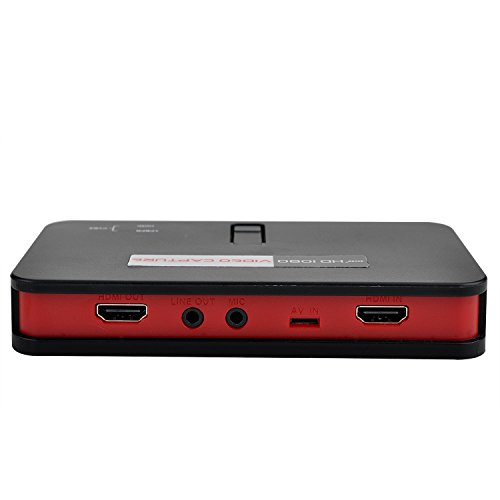

Video Input – Digital: HDMI,Analog: Component Video, Composite Video
Audio Input – Digital: HDMI,Analog: RCA L/R, 3.5mm Micro Phone In (Note: Microphone without pass through for HDMI input)
Video Output – Digital: HDMI (Pass-through from HDMI, component or composite)
Audio Output – Digital: HDMI (Pass-through from HDMI, L/R),Analog: 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)
Codec: Hardware MPEG4 encoder
User Interface: On-board Hot Button for one-click recording
Storage Media: USB Flash Disk, Portable Hard Disk, SD Card (Note: The exFAT format is not supported. )
Record Format: Video: AVI MPEG4, Audio: AAC Stereo
Record Quality: Max: 18Mbps@1080P 30fps
Record File: Max: 2GB / Per File
Record Place: Max: 140MB / Minute, 8.4GB / Hour
Power Supply: DC 5V / 2A with Mini USB port
Software: Arcsoft Showbiz
Video Editing: Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes
Video Export: Upload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, QuickTime (MOV)
Operating System: Windows 8/Windows 7/Windows Vista (32 / 64 bit)
CPU: Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory: 4 GB RAM
Graphics Card: VGA card with support for DirectX 10.0c or above.

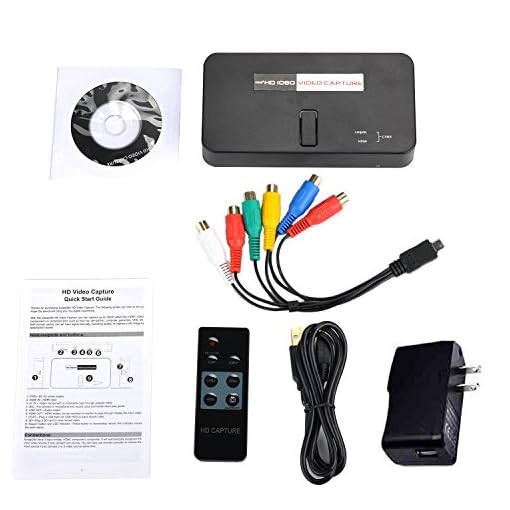

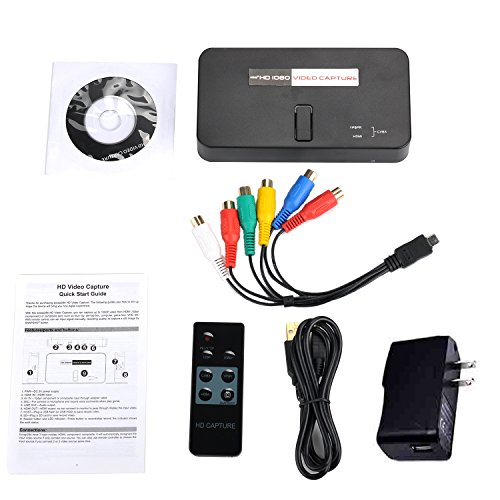

Package Contents:
Main Unit
Adapter cable (for component and composite video)
DC adapter
Software CD
User Manual
Remote Control
1080P record with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your gameplay from PS3,PS4,Xbox360,etc. Save Memory — USB Flash or SD card(You can save it with USB Flash or SD card)
Support HDMI, Component(Ypbpr), Composite Video input, Microphone input. Note: ezcap284 can’t decode HDCP for HDMI, need buy a splitter or converter decode HDCP first, or record the via Ypbpr. or buy our ezcap283S.
Support HDMI Pass through, you can play HD gameplay when you’re recording it
With RTC (Real-Time Clock recording) function, manage recording files easily and can Upload to YouTube
With Remote Control,can record/stop,select the video source,change the recording quality between 1080 and 720,capture the still photo via the snapshot function
